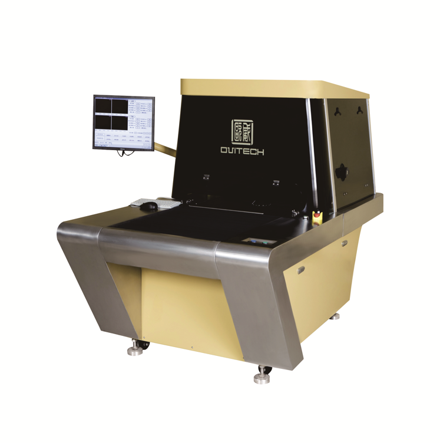

Name：AOI Station

Model：TOPTECH _AOI T11

Overview

Equipment size：L×W×H 2150mm×1350mm×1780mm
Equipment Weight：1500kg
Working Electric Power: AC 380V± 5% 50 Hz 3.7 KWh　　Three-phase five-wire (TN-S) system
Standard resources and references：RS-274X GERBER Format ODB++ Format
Test capability：Line Width/ Line Space down to 2mil
Can Detectable Defects：open circuit、short circuit、nicks、burrs、pinholes、copper slag、copper isolated convex circle、 line width / line space irregularities、 leakage drilling、holes shift.

range

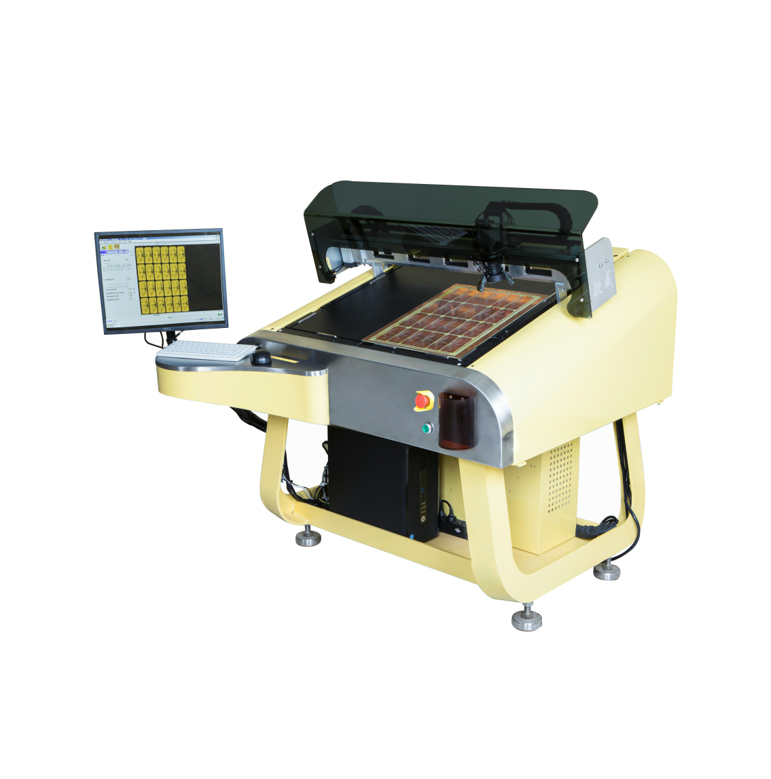

Name：Verify Repair Station

Model：TOPTECH_VRS

Overview

Equipment size：L×W×H 1600mm×1150mm×1300mm
Equipment Weight：400KG
Working Electric Power：AC 380V±5% 50Hz 1.7 KWh Three-phase five-wire (TN-S) system
Standard resources and references：RS-274X GERBER Format ODB++ Format
Image magnification：30-100 times
Table Size：26″×28″（660×711mm）
Maintenance Area：24″×26″（610×660mm）
Focus Mode：Manual focus

range

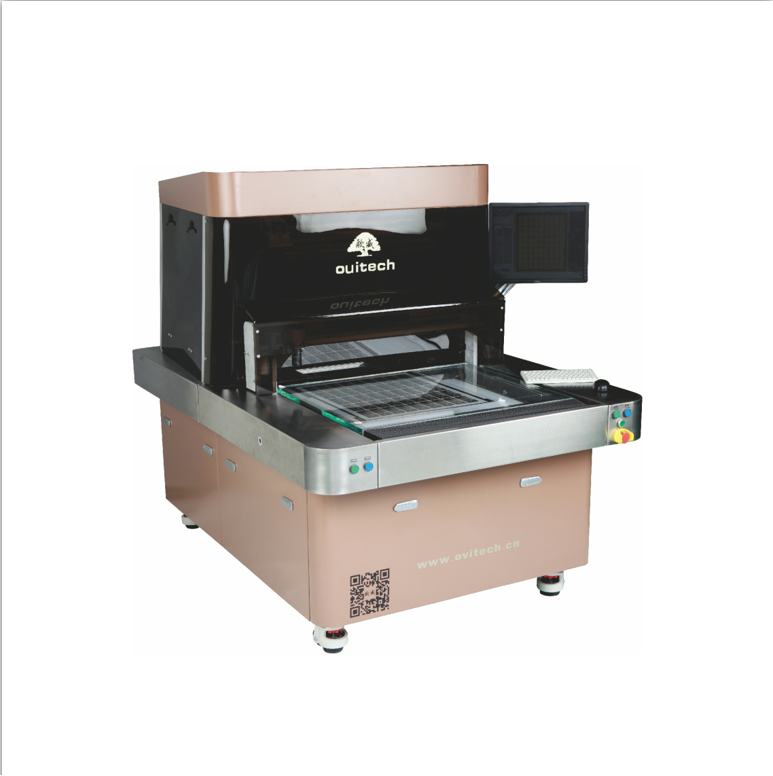

Name：PCB-Film Inspection

Model：TOPTECH _FILM AOI F10

Overview

Equipment size：L×W×H 2250mm×1350mm×1780mm
Equipment Weight：1200KG
Working Electric Power：AC 220V±5% 50Hz 1.7KWh
Standard resources and references：RS-274X GERBER Format ODB++ Format
Test capability：Line Width/Line Space down to 2mil
Can Detectable defects：open/short circuit、gap/burr、pinholes、stains、line width/line space irregularities、missing/more images.

range

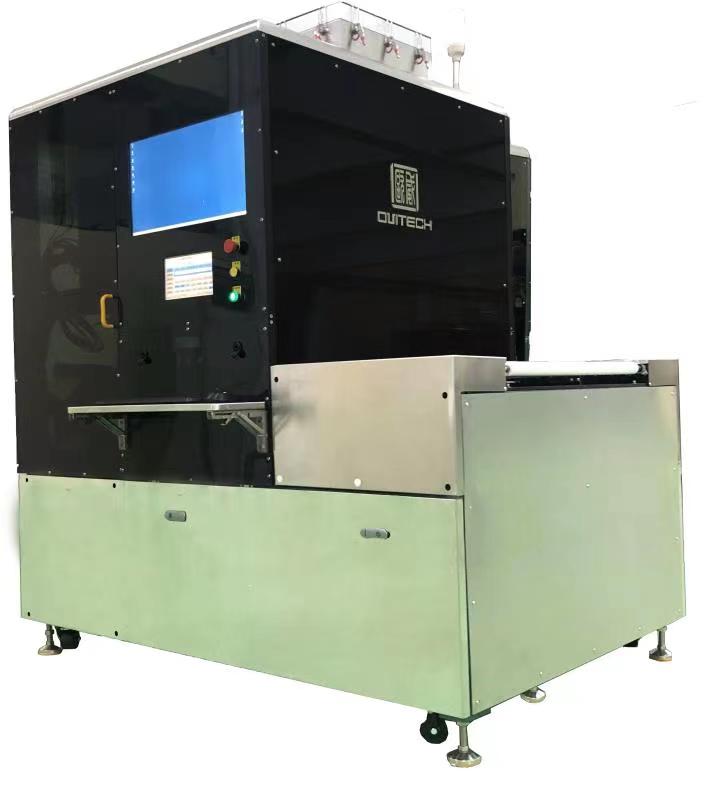

Name：

Model：

Overview

1.　　產能（片/小時）：650片/小時，（生產條件：18inch*24inch最小線寬線距2mil）
2.　　可匹配的最快流水線速度：8米/分鐘
3.　　測試板厚：0.05~3.5mm
4.　　最大測試尺寸：24.5inch*26inch（622mm*660mm)
5.　　檢測產品類型：銅板、金板、鋁基板、鍍鎳板等
6.　　檢測缺陷：開路、短路、缺口、毛刺、針孔、銅渣、線寬線距超公差、偏孔、漏鉆等
7.　　設備主體尺寸（長*寬*高）：2040mm*1510mm*2110mm

range
