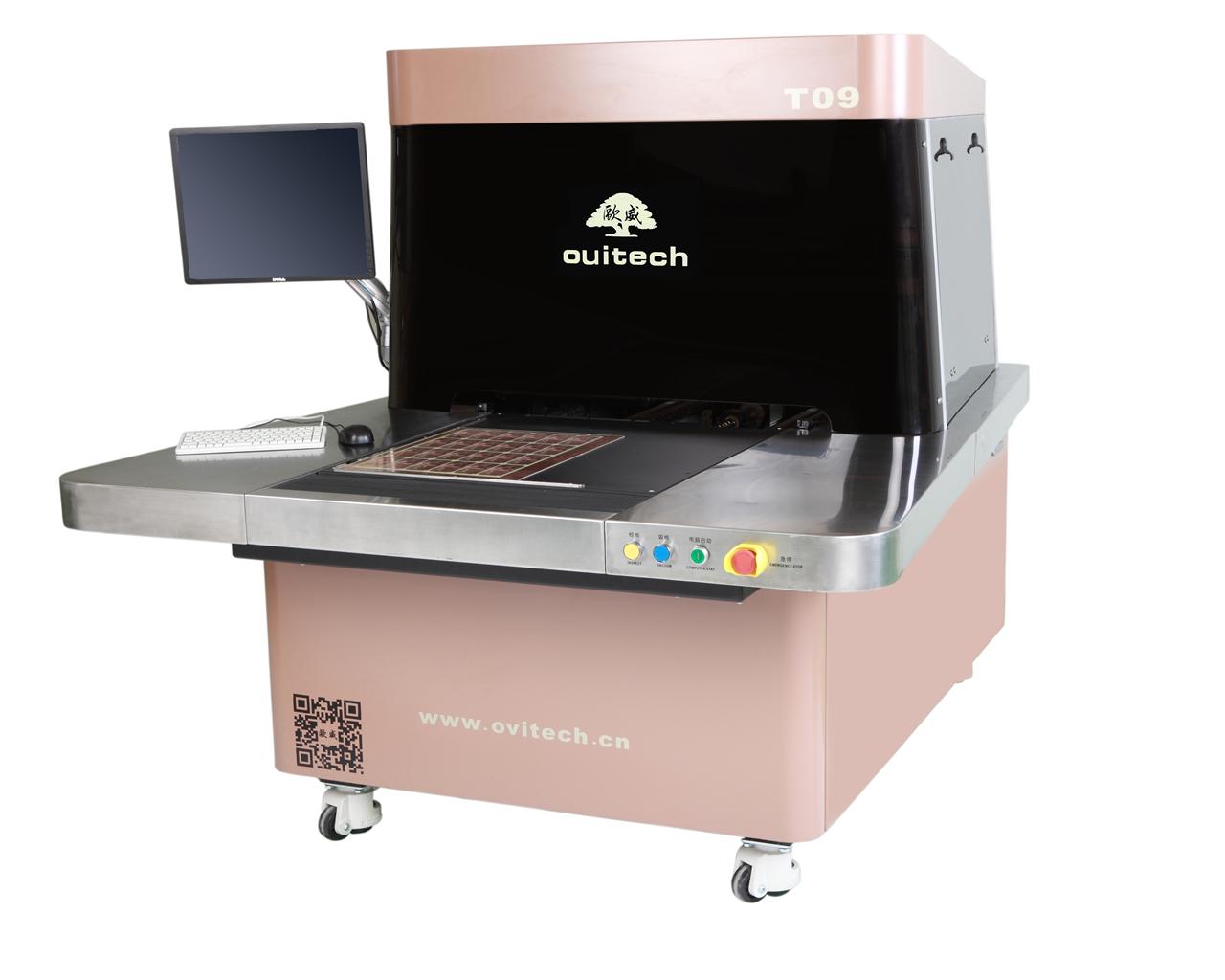

Performance Description
Equipment size：L×W×H 2000mm×1560mm×1600mm
Equipment Weight：1500kg
Working Electric Power: AC 380V± 5% 50 Hz 3.7 KWh Three-phase five-wire (TN-S) system
Standard resources and references：RS-274X GERBER Format ODB++ Format
Test capability：Line Width/ Line Space down to 2mil
Line Width / Line Space Test method based on size：18″×24″
5mil 4mil 3mil 2mil
Scanning：face/hour 200 face 180face 160face 120face
Table size：26″×28″（660×711mm）
Test Area：24″×26″（610×660mm）
Board Form：Inner/outer；Cabling type including signal、 power supply ground、 mixed shielding、grid and others.
Test Material：plating copper board、 golden board、nickel-plated board、dry / wet film board、FR-4、CEM and flexible board material
Can Detectable Defects：open circuit、short circuit、nicks、burrs、pinholes、copper slag、copper isolated convex circle、 line width / line space irregularities、 leakage drilling、holes shift.
Defect inspection method：elements characteristics of study sub-pixel contour analysis and comparison.
System Software Installation environment：WindowsXP Windows2003 Windows7
Position System：Servo motor positioning system
Mechanical Drive：Precision guides + ball screw transmission system
Illuminant System：LED cold light concentrating highlighted system |
